A Bicycle Hub Motor

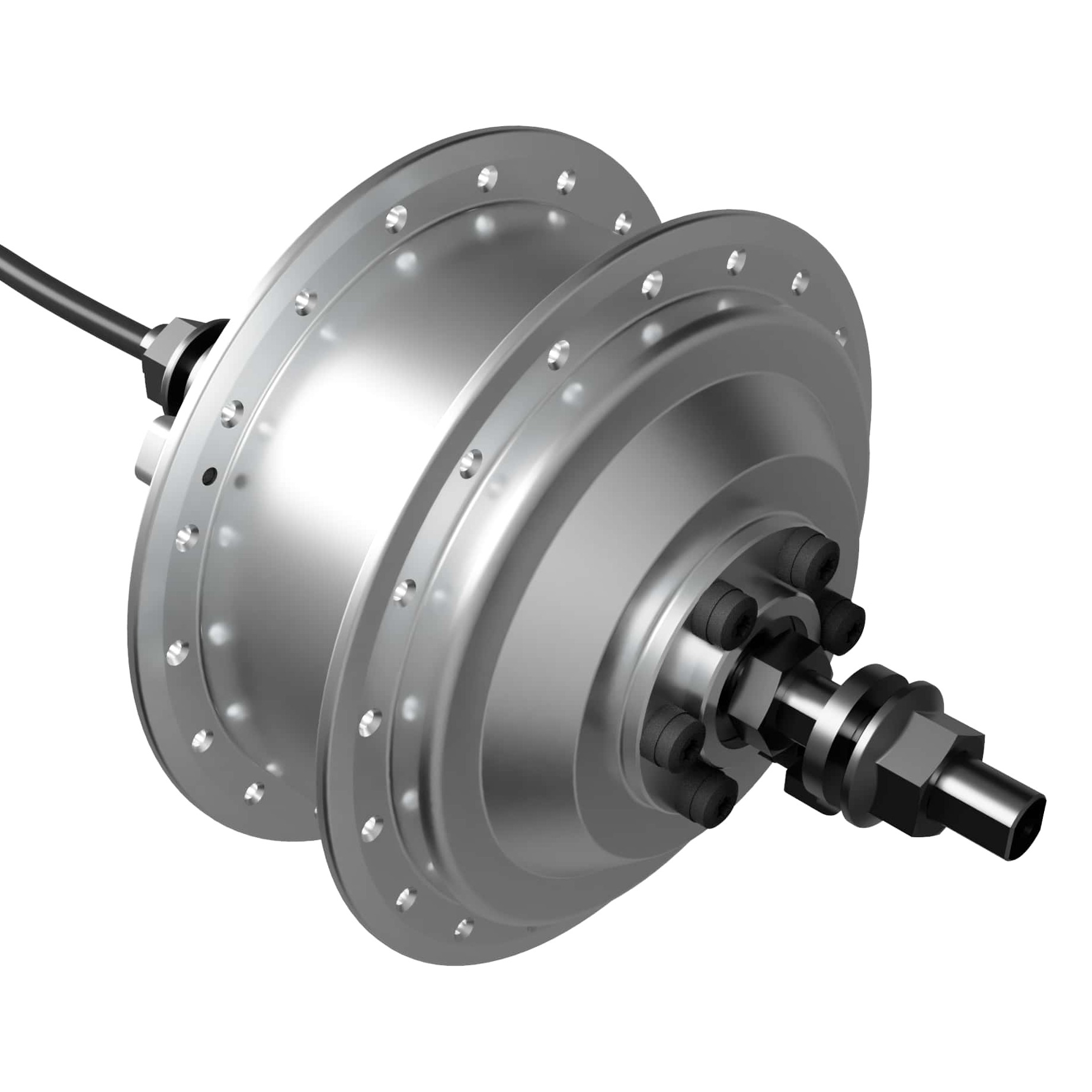

36V, 250W Bicycle Hub Motor (GBH97-3A1)

GBH97 - Bicycle Line Item Code: GBH97-V36N220W450-SPC1

UOM : Nos
  1. A 48V, 310 rpm Bicycle Hub Motor for e-bikes or e-cycles.
  2. Can be customized to your rpm and wheel size, just reach out to us on contact@gremot.com
Rated Power 250 W (12 Nm @ 210 rpm)
Peak Power 500 W (22 Nm @ 150 rpm)
Max Speed 220 rpm (25 kmph w/ 26 inch rims)
Stall Torque 40 Nm
IP Rating 65
Operating Voltage 36 V
Motor Type Geared Hub Motor
Over Locknut Dimension (OLD) 135 mm
Brake Compatibility Rim Brakes and Disc Brakes ( 160, 180 mm)

Paired with MTC-26A1 with 10A DC Current

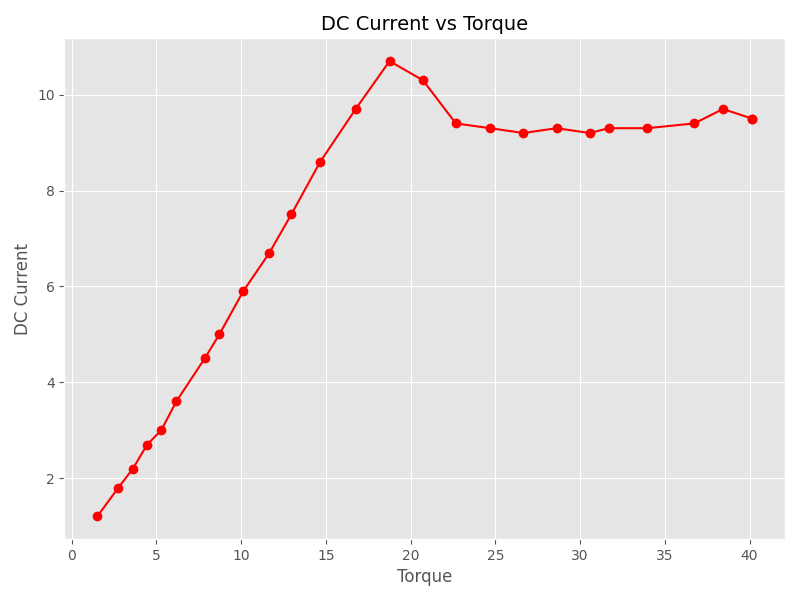

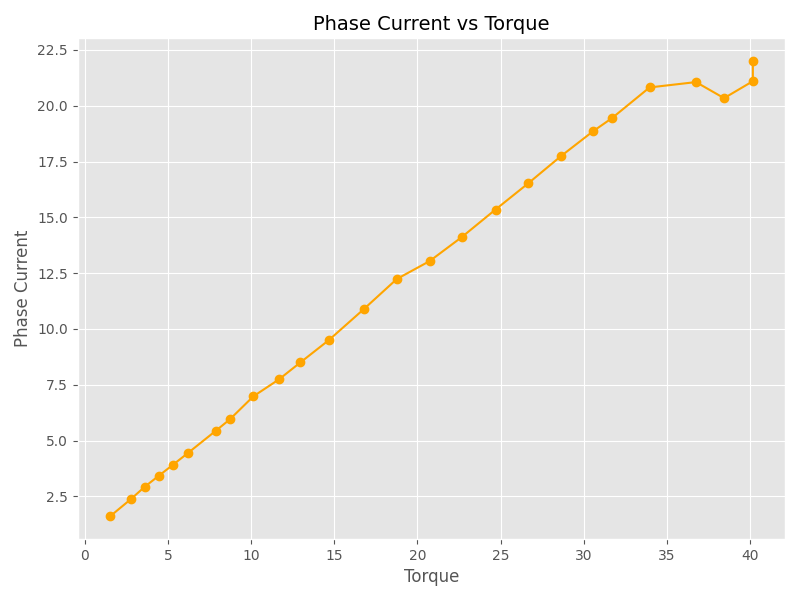

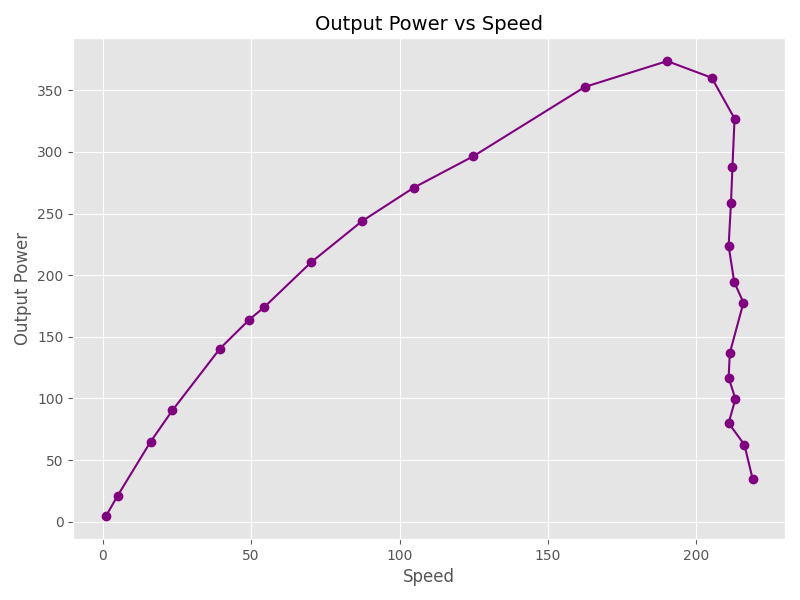

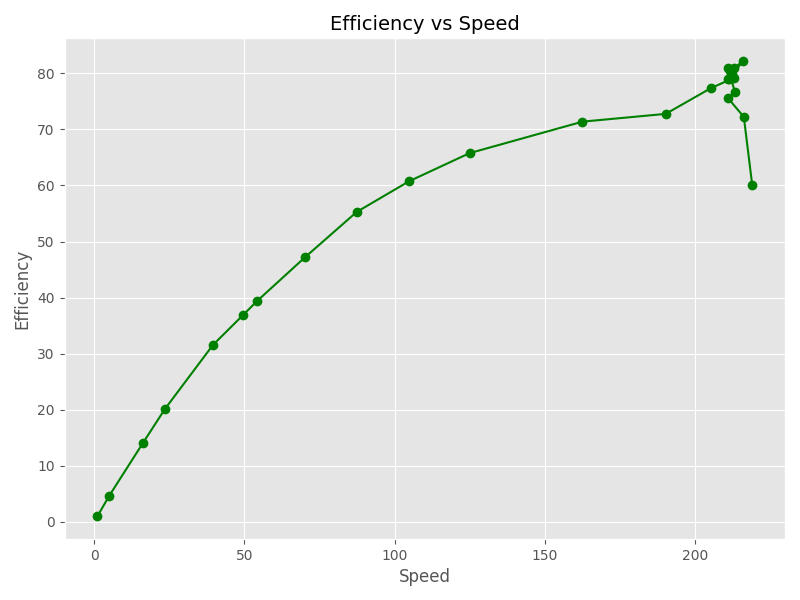

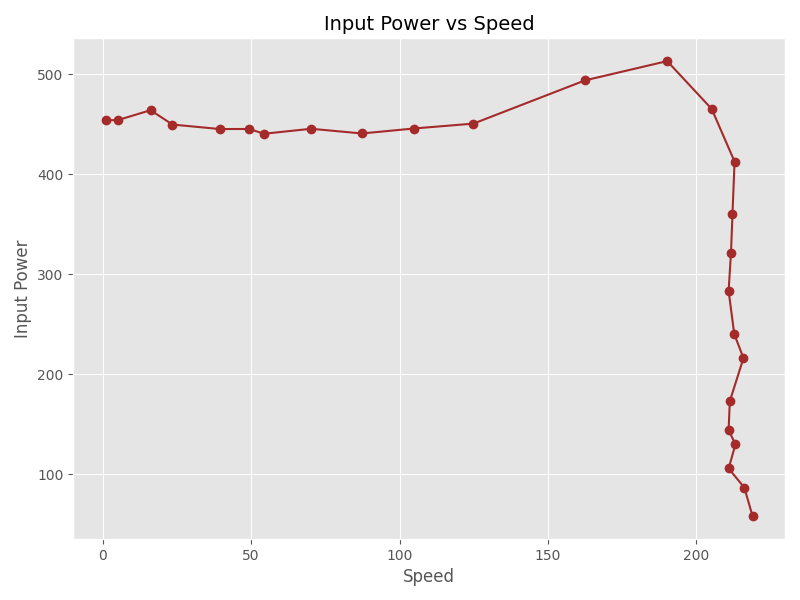

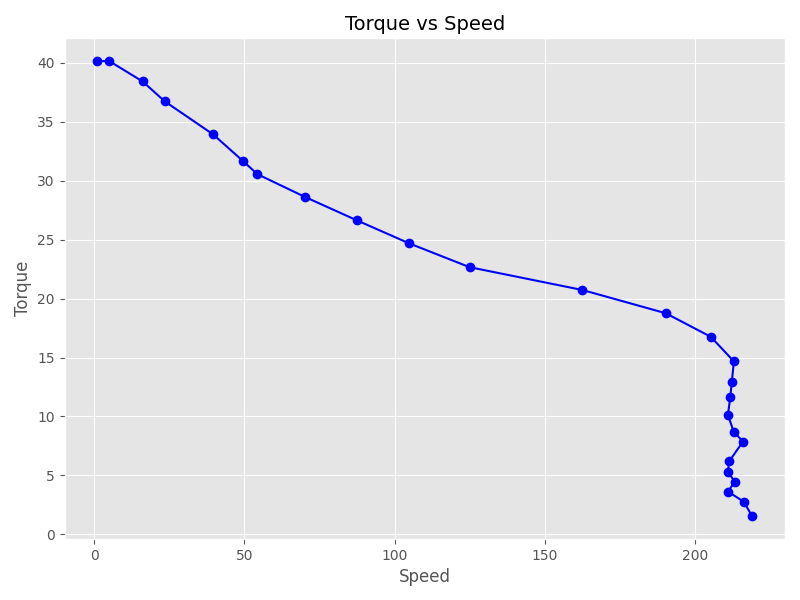

Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve


3D Drawing

Click to view/download the 3D Drawing. Available in a variety of formats for all modelling software.

View 3D (CAD)
2D Drawing

2D with the important GD&T for integration with your product.

View 2D (PDF)
Recommended
item.website_item_name

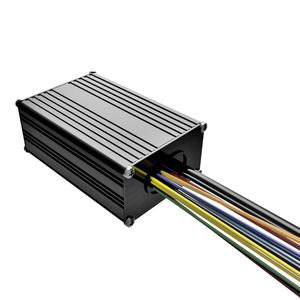

MTC-26A1 (250 W) Bicycle Motor Controller
