GMM120-1A1 (1kW, 3000 rpm) PMSMotor
GMM120-1A1 (1.2 kW, 3000 rpm) PMS Motor

Electric Motors Item Code: GMM120-1A1

UOM : Nos
  1. Appropriate for e-3W, e-2W and Automated Guided Vehicles.
  2. Can be modified and customized to your application.
Torque 3 Nm
Speed 3000 rpm
Continuous Power (S1 Duty) 1.2 kW
Peak Power (S1 Duty) 2.5 kW
IP Rating 65
Cooling Shaft Mounted Fan

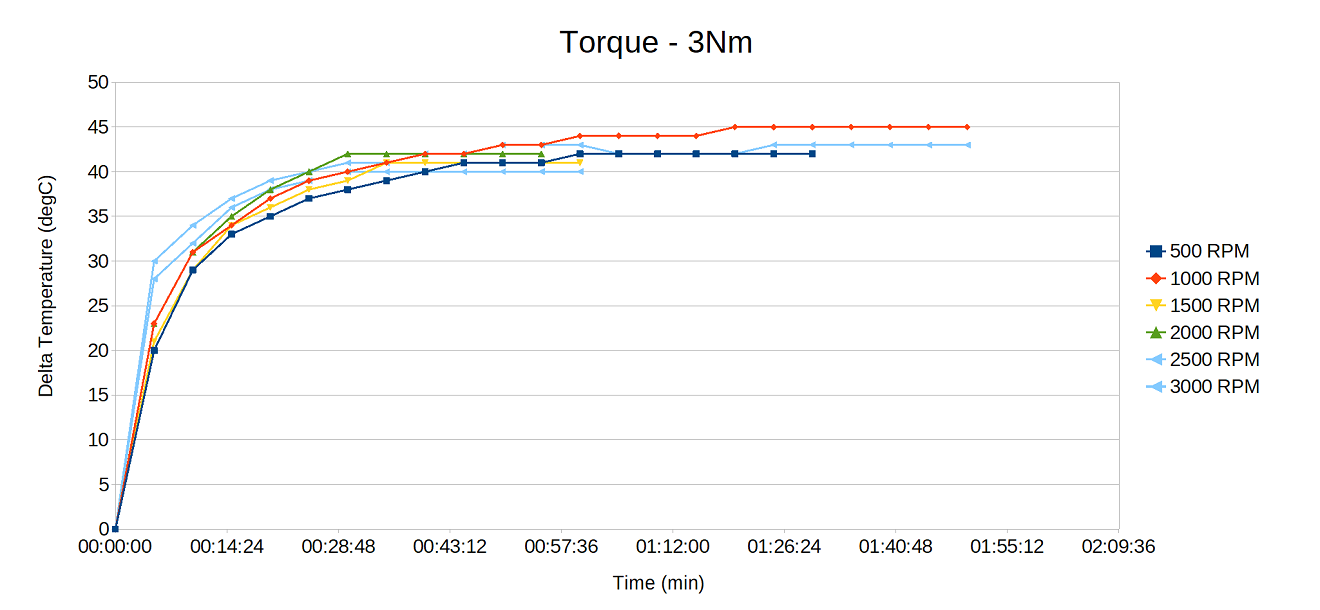

3Nm Derating Curve

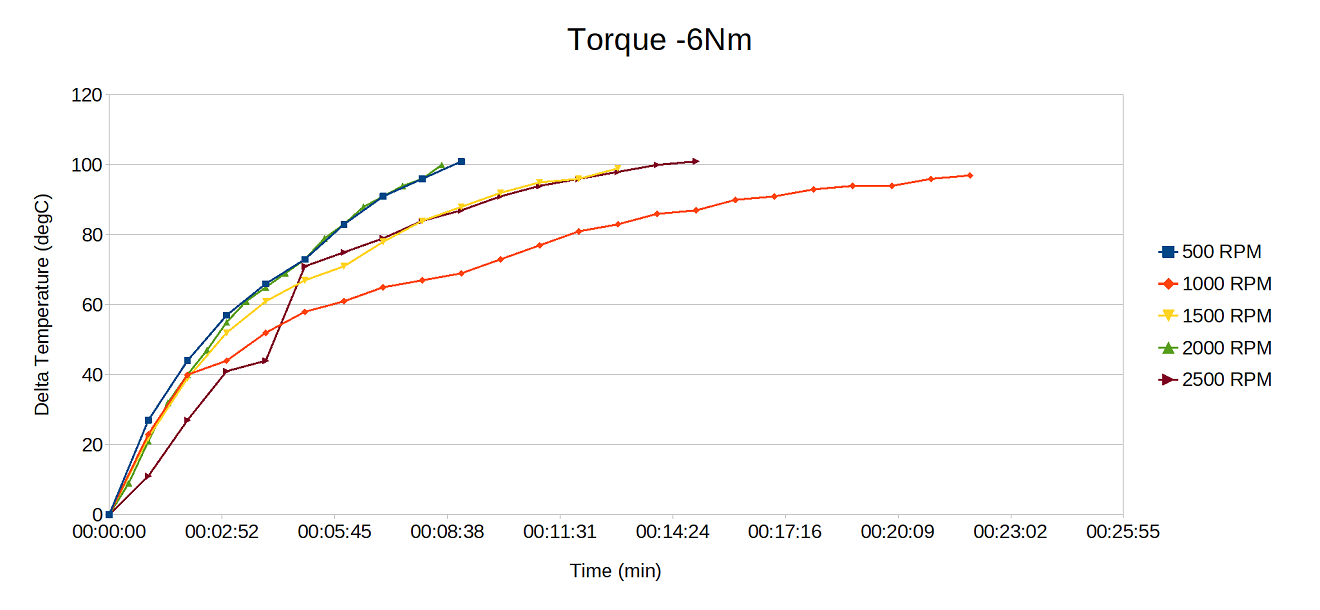

6Nm Derating Curve
3Nm Derating Curve
6Nm Derating Curve

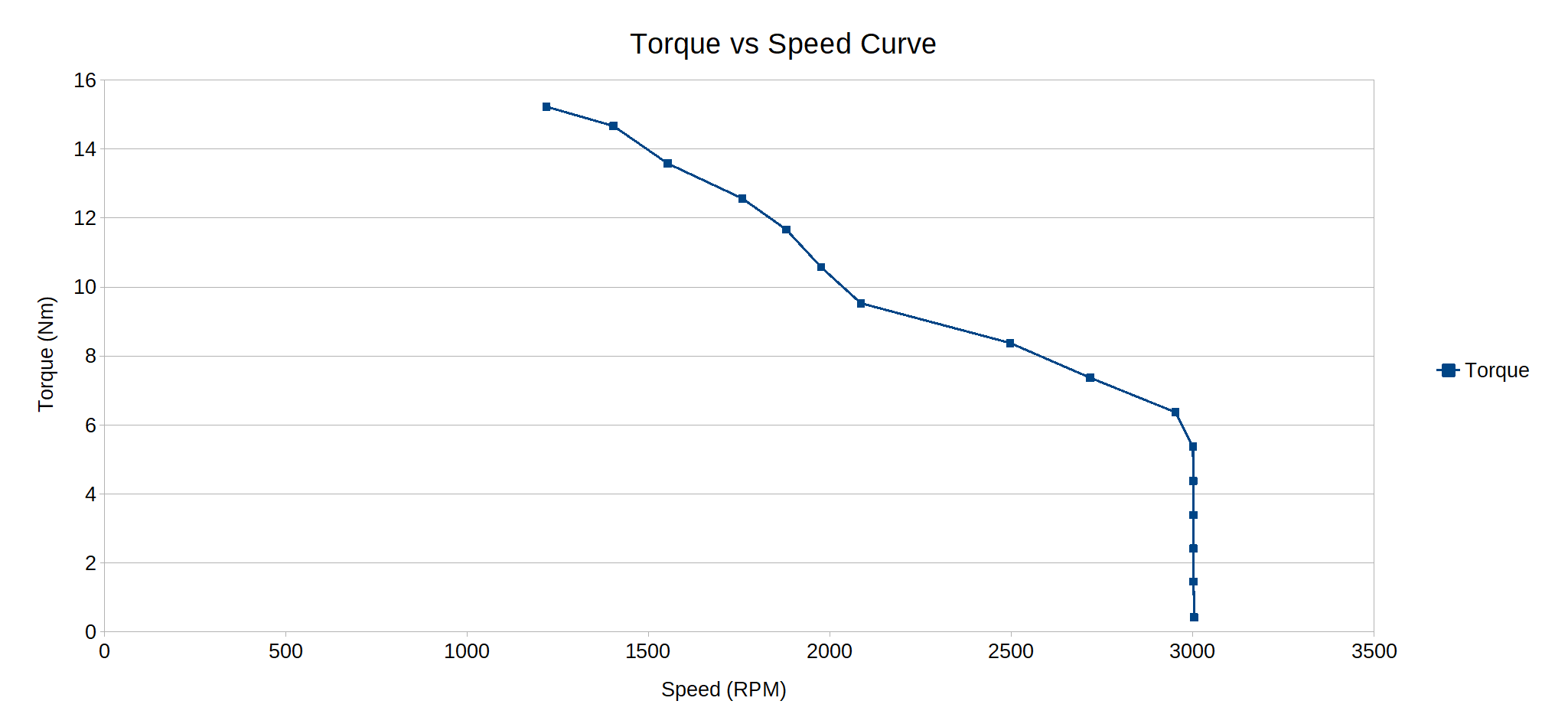

This Torque Speed Curve is when paired with the MTC2000 Motor Controller

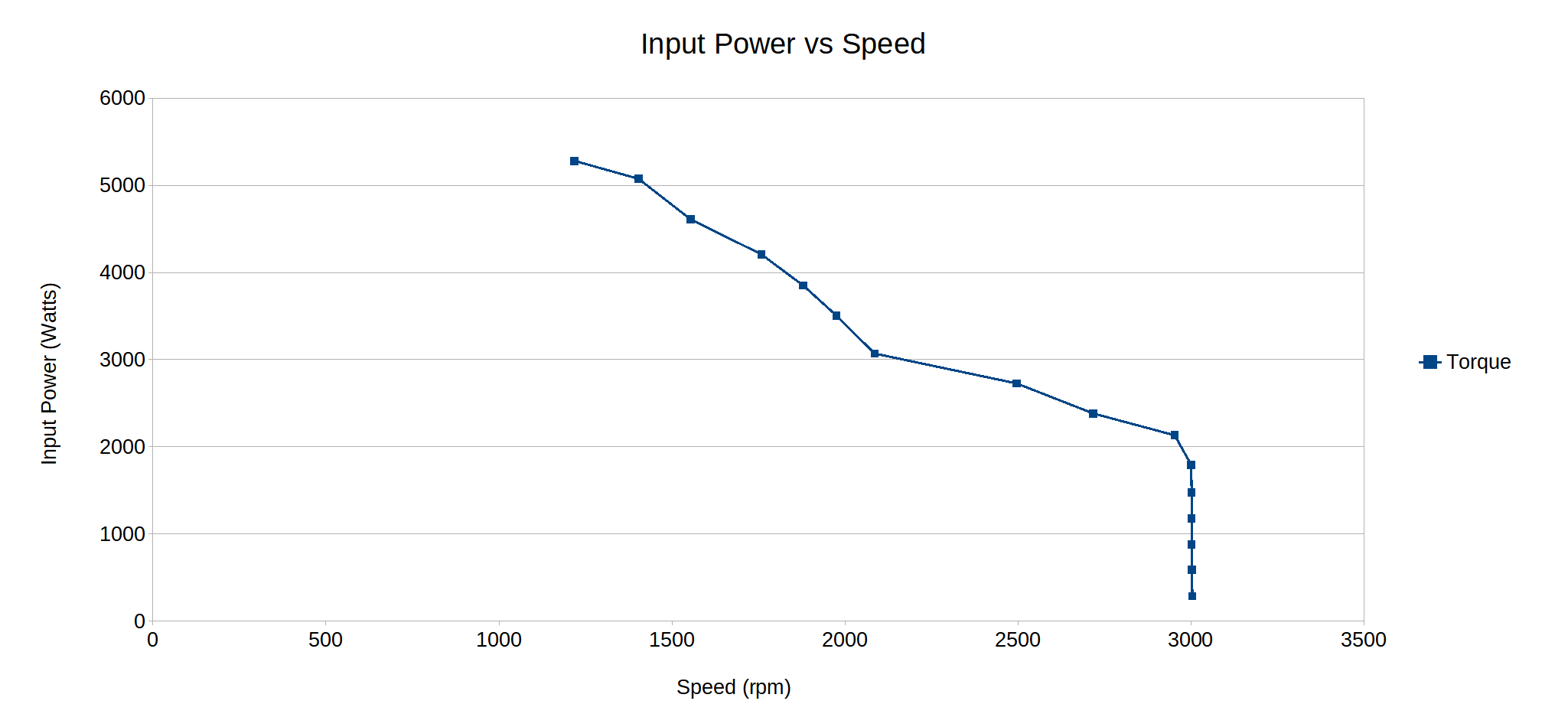

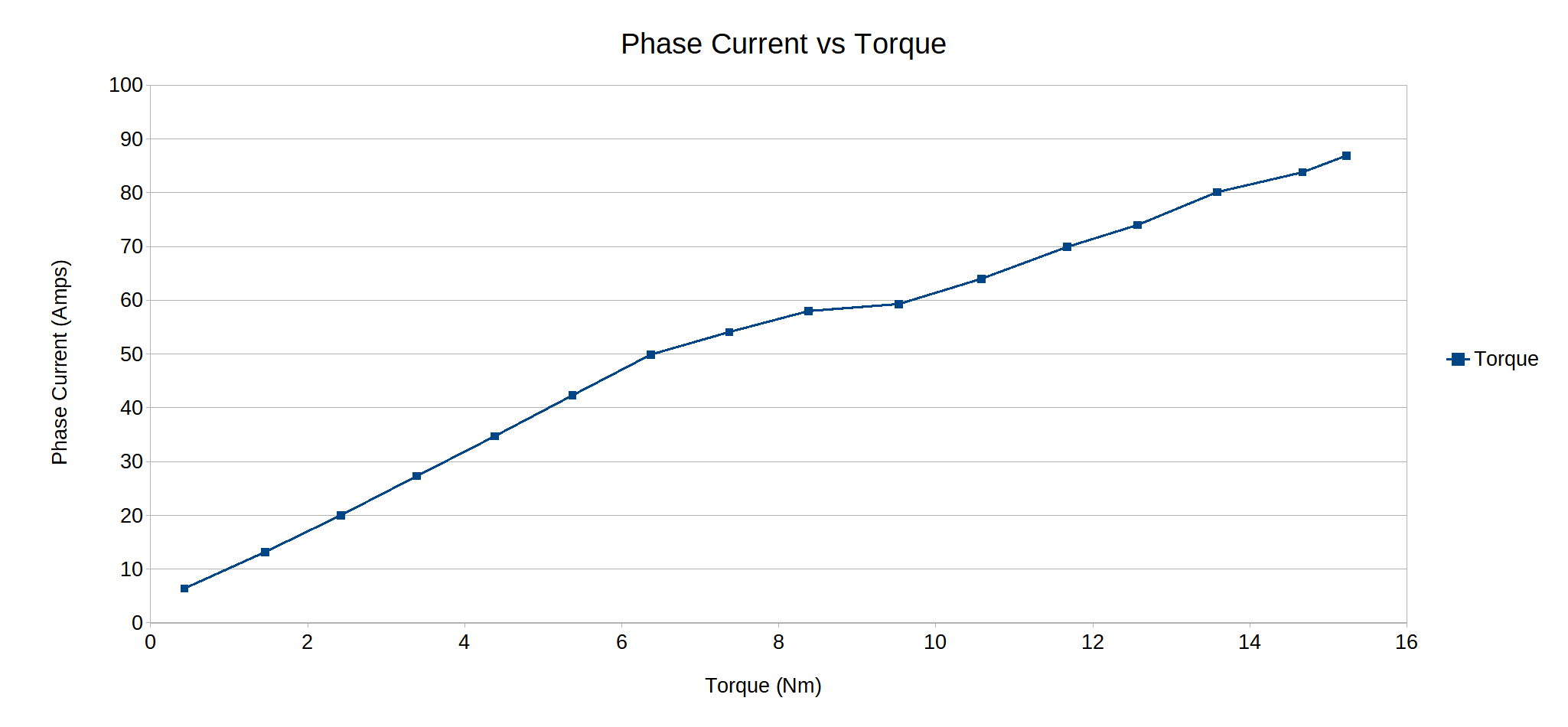

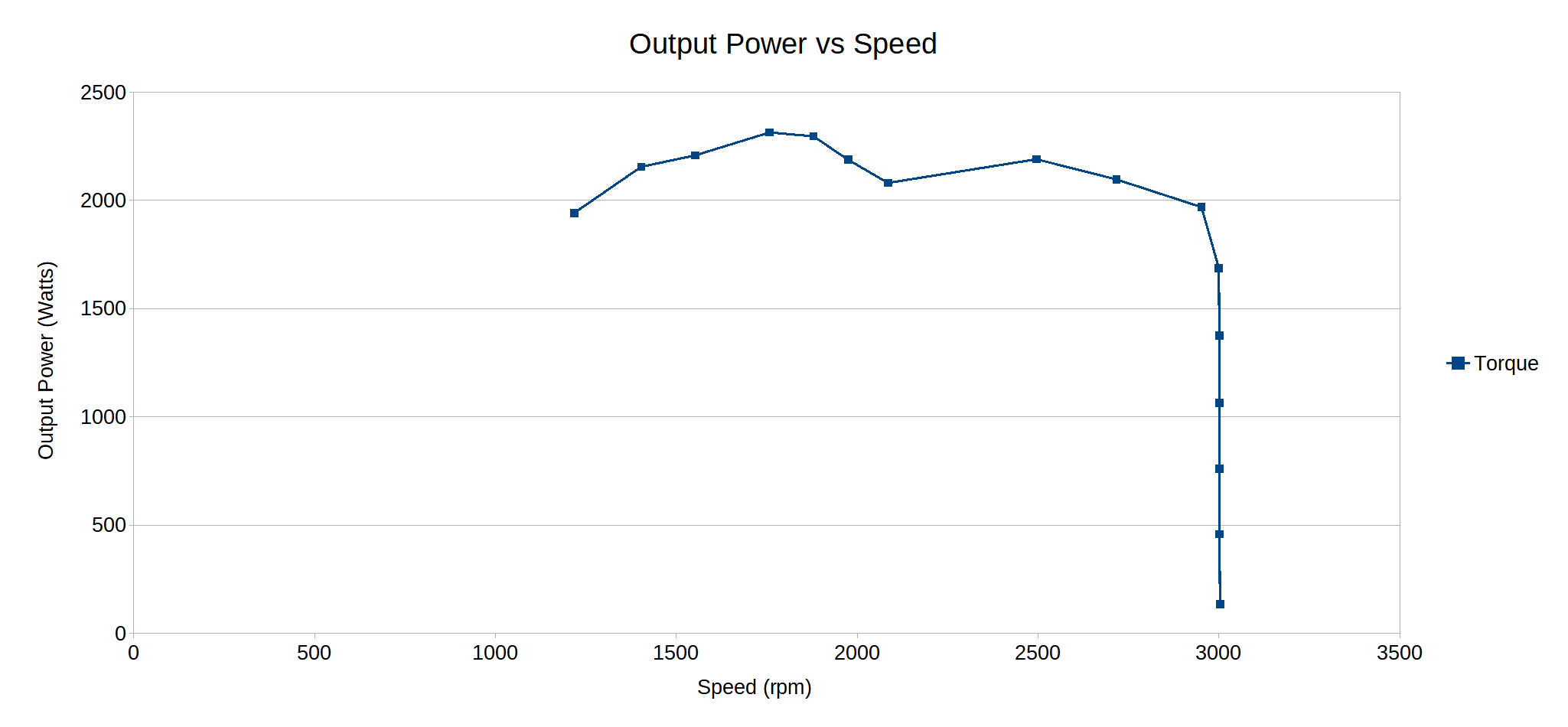

Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve
Torque Speed Curve


3D Drawing

Click to view/download the 3D Drawing. Available in a variety of formats for all modelling software.

View 3D (CAD)
2D Drawing

2D with the important GD&T for integration with your product.

View 2D (PDF)
